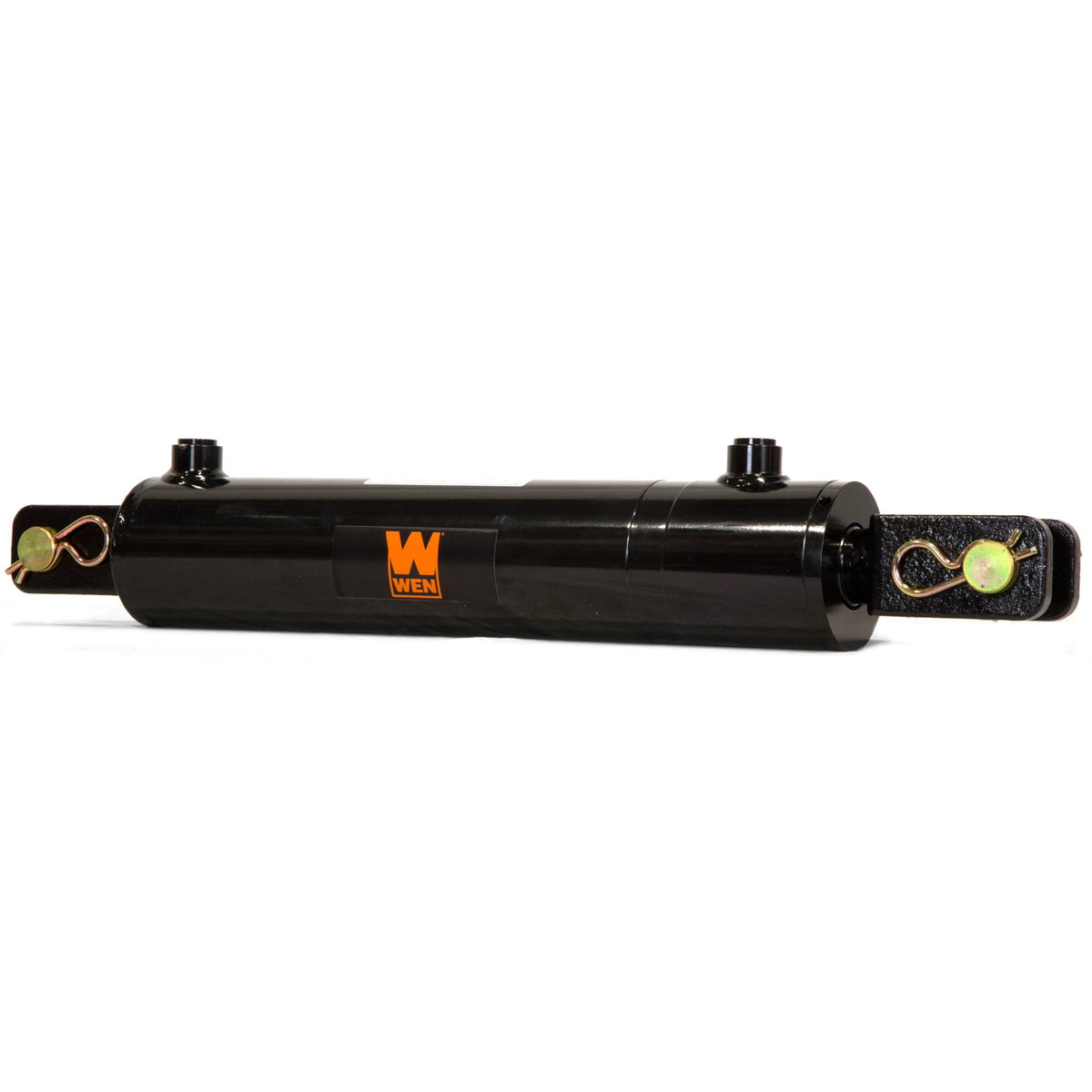

WEN CC-3012 Clevis Hydraulic Cylinder with 3-inch Bore and 12-inch Stroke

Description

• Double-acting steel-welded design handles pressure up to 3000 psi
• Features a 3-inch bore, a 12-inch stroke, and a 1. 5-inch rod diameter
• SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
• Retracted 22. 25-inch cylinder extends out to 34. 25 inches in length
• Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year

Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. This double-acting clevis hydraulic cylinder wtihstands operating pressures of up to 3000 PSI. The SAE-8 port (3/4 inch-16UNF) attaches easily to the hydraulic hose of your choice. With a 3-inch bore and a 12-inch stroke, this durable cylinder goes from a retracted length of 22. 25 inches all the way out to an extended length of 34. 25 inches. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1-inch diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. And because it’s a WEN product, your cylinder comes backed by a two-year and a friendly customer help line, all to make sure you remember WEN.For CA residents, click here for Proposition 65 information
