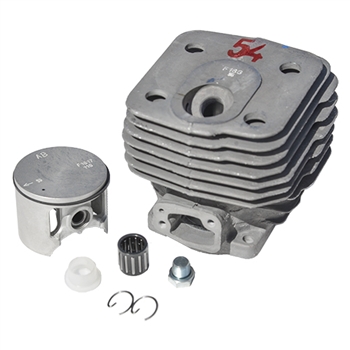

Genuine Husqvarna Cylinder Assembly (54 mm) for 181 / 281 / 288 / 288 XP
Original factory replacement cylinder from Husqvarna — the exact part your saw left the factory with.Genuine OEM Cylinder Assembly (part number 544 22 31-02, supersedes 503 50 63-01 / 503 50 63-02 / 503 90 74-71) restores full performance and reliability to your classic big-bore Husqvarna.
Perfect for professional loggers and collectors who demand 100% original Husqvarna quality and fitment on their 181, 281, or legendary 288 XP.
Key Features:
- Genuine Husqvarna OEM cylinder assembly with factory Nikasil plating
- 54 mm bore – exact stock specification
- Part number 544 22 31-02
- Complete assembly includes cylinder, piston, rings, wrist pin, and circlips
- Factory quality and finish for maximum durability and performance
Compatibility:
- Husqvarna 181
- Husqvarna 281 / 281 XP
- Husqvarna 288 / 288 XP / 288 XP Lite (all versions)
Quick Installation Tips:
- Always use a new base gasket (501801302)
- Clean crankcase sealing surfaces thoroughly with brake cleaner or alcohol
- Lightly oil the piston, rings, and cylinder bore before assembly
- Use a proper ring compressor or the “finger method” to slide the cylinder down over the piston
- Torque the four cylinder base nuts in a criss-cross pattern:
- First stage: 6 Nm
- Final stage: 12–14 Nm
- Re-torque cylinder nuts after the first heat cycle
- Break-in: Run at least 3–4 tanks of 40:1 fuel at moderate RPM, varying throttle — avoid prolonged full throttle for the first 10 hours
Workshop Manuals & Parts Diagrams:
- Workshop Manual – 281 XP / 288 XP
- Parts Diagram – 281 XP
- Parts Diagram – 288 XP
Note: Professional installation recommended. Always verify part number with your saw before ordering.
