Description

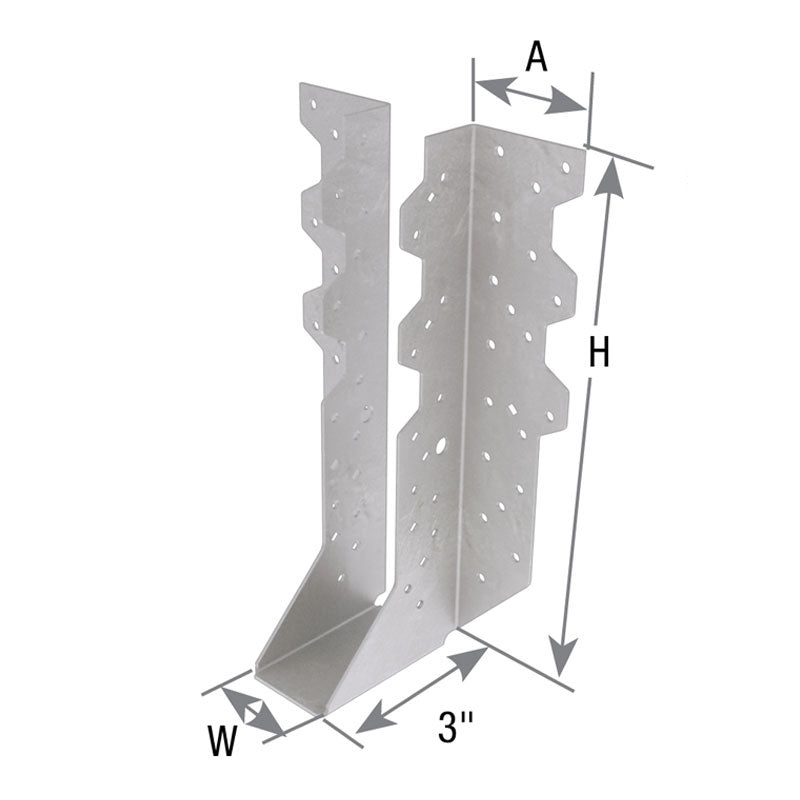

The HUS, JUS, and MUS hanger series offers double shear nailing. MiTeks dimple allows for 30 to 45 nailing through the joist into the header resulting in higher loads and less nailing. Slant/double shear nailing allows for higher load values, fewer nails, and faster installation.
Materials:JUS18 gauge; MUS18 gauge; HUS14 or 16 gauge
Finish:G90 galvanizing
INSTALLATION
- Use all specified fasteners.
- Joist nails must be driven at a 30 to 45 angle through the joist or truss into the header to achieve listed loads.Slant/double shear nails must be used to achieve listed load values.
- JUS / MUS16d sinkers (0.148 x 3-1/4) may be used where 10d commons are specified with no load reduction.
