Description
Description:

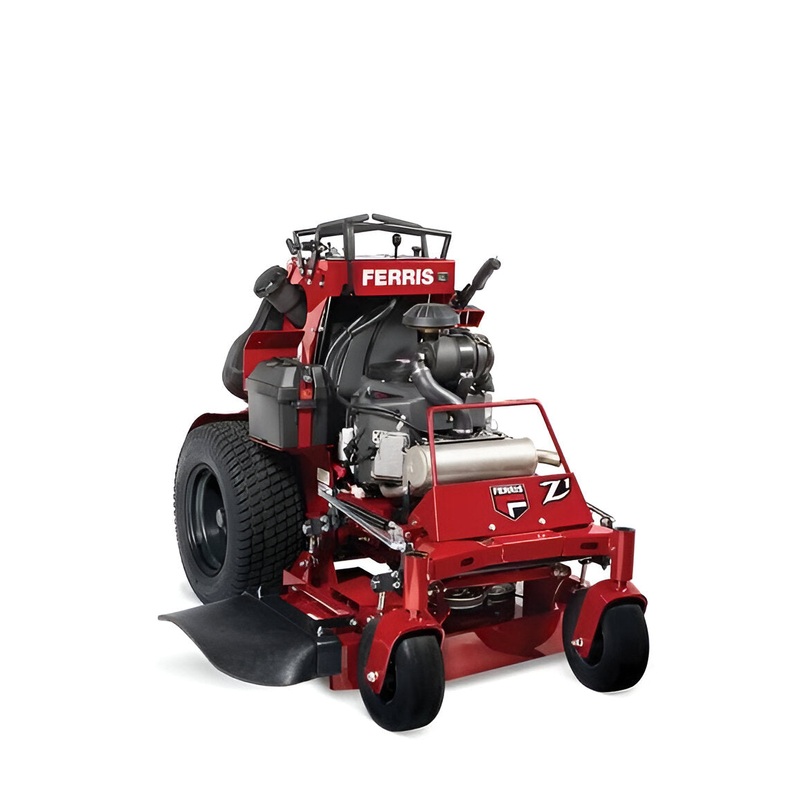

The SRS Z1 offers all of the same great productivity and comfort as the larger SRS Z2, but in a more compact package. With smaller mowing deck options, the Z1 is optimal for navigating through tight gates or loading on smaller trailers. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.
Features
- Ride-On Mower Warranties: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
- Speed Control Setting: The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.
- Suspension Platform System: The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
- Standing Comfort: Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.
- Adjustable Height of Cut: Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4″ increments from 1.75″- 4.5″.
- Integrated Mowing Transmissions: Commercial Hydro-Gear ZT-3400 transaxles with 7″ cooling fans are designed for high performance and are fully serviceable.
- iCD Cutting System: Innovative iCD Cutting System was engineered to produce the best possible cut in a multitude of conditions.
- Generous Fuel Capacity: A 6-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.
Specifications
- Model Number: 5901546
- Engine Brand: Kawasaki FX600V
- Engine Power Rating (hp) *: 19
- Starter: Electric
- Displacement (cc): 603
- PTO: Electric
- Cylinders: 2
- Fuel Tank Capacity (gal): 6
- Cutting Width (in): 36
- Cutting Height (in): 1.75-4.5
- Spindles: Aluminum
- Suspension: Adjustable coil-over-shock, Operator Suspension Platform
- Transmission: Hydro-Gear ZT-3400 transaxles with 7″ cooling fans
- Drive Axles (in): 1.125
- Drive Tires (in): 23 x 8.5-12
- Caster Tires (in): 11 x 4-5, Flat free
- Ground Speed-Fwd (mph): 0-8
- Ground Speed-Rev (mph): 0-4
- Overall Length (in): 63.75
- Overall Width (in) Deflector Down/Deflector Up: 49 / 42
- Dry Weight (lbs): 813
- Seat Package: N/A
- Certified Roll-over Protection System: N/A
- Instrumentation: Dual-function hour meter, fuel level gauge
- Safety Group/Controls: Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
- Parking Brake / Safety Circuit: Hand-operated internal transaxle brake
- Warranty (Balance of Machine) : 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 6 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator’s manual for complete details.
- Warranty (Engine) : 3-Year limited manufacturer’s warranty
