Description

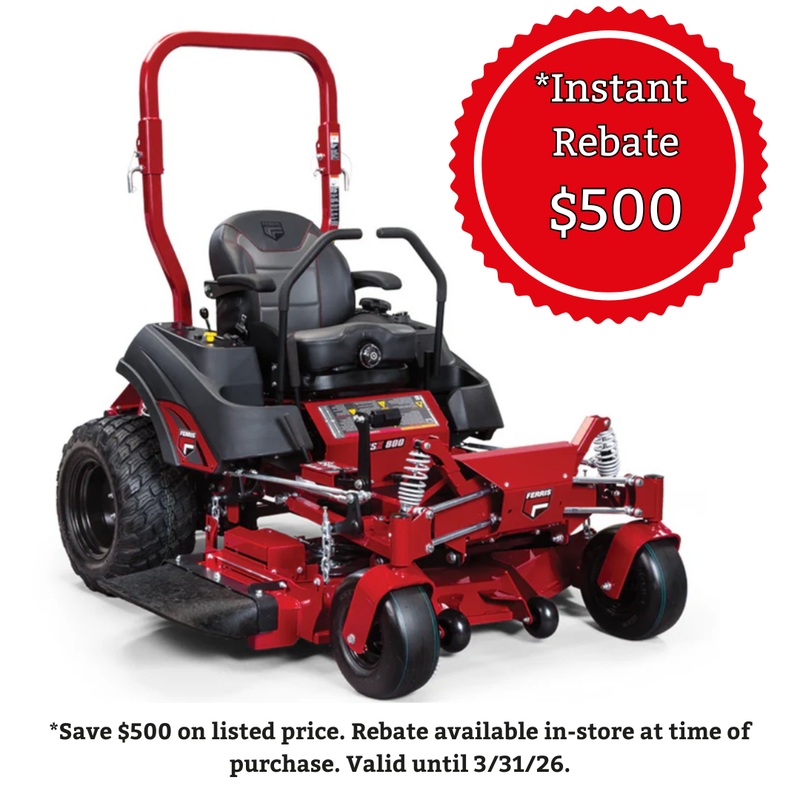

Affordable Commercial Zero Turn With Next Generation Ferris Suspension Technology
Featuring the next generation of Ferris suspension technology – ForeFront Suspension, a two-belt iCD cutting system, heavy-duty Hydro-Gear ZT-3400 drive system and travel speeds up to 10 mph, the ISX 800 is engineered to increase efficiency and operator comfort.
FEATURES
- ForeFront Suspension System: The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
- Ride-On Mower Warranties
- Easy Access: Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
- Integrated Transmission: Commercial Hydro-Gear ZT-3400 transaxles, with 7″ cooling fans, are designed for high performance and are fully serviceable.
- iCD Cutting System: iCD Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).
- Mower Spindles: Cast-aluminum greaseable spindles feature 1″ shaft with 2.5″ x 1″ dual ball bearings with top access grease fittings and pressure relief valve.
- Acres per Hour: Mows up to 5 acres per hour, based on 80% efficiency.
- Miles per Hour: Up to 10 MPH ground speed, reverse 5 MPH.
SPECIFICATIONS
- Model Number: 5902022/5902001
- Engine Brand: Kawasaki FT730V – EFI
- Engine Power Rating *: 26
- Displacement (cc): 726
- PTO: Electric
- Cylinders: 2
- Starter: Electric
- Fuel Type: Gasoline
- Fuel Tank Capacity (gal): 5.5
- Hour Meter/Instrumentation: Dual-function hour meter, fuel level gauge in tank
- Cutting Width (in): 61
- Cutting Height (in): 1.5 – 5
- Spindles: Aluminum Greaseable
- Deck Construction: iCD Cutting System, 2-Belt
- Suspension: ForeFront Suspension System
- Transmission: Dual commercial Hydro-Gear ZT-3400 transaxles with 7″ cooling fans
- Drive Axles (in): 1.125
- Caster Tires (in): 13 x 6.5-6
- Drive Tires (in): 23 x 10.5-12
- Ground Speed-Fwd (mph): 0-10
- Ground Speed-Rev (mph): 0-5
- Overall Length (in): 83
- Overall Width (in) Deflector Down/Deflector Up: 75 / 63.5
- Dry Weight (lbs): 1197
- Seat Package: Mid-back suspension seat with arm rests
- Certified Roll-over Protection System: 180 foldable
- Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
- Parking Brake / Safety Circuit: Hand operated Internal transaxle brake
- Warranty (Engine) : 3-Year limited manufacturer’s warranty
- Warranty (Balance of Machine) : 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
- Engine Configuration: Kawasaki
| Width | Weight | Height | Length |
|---|---|---|---|
| 0Inch | 1197Pounds | 0Inch | 0Inch |
