Description
Description:
The Leader In Suspension Technology For Turf

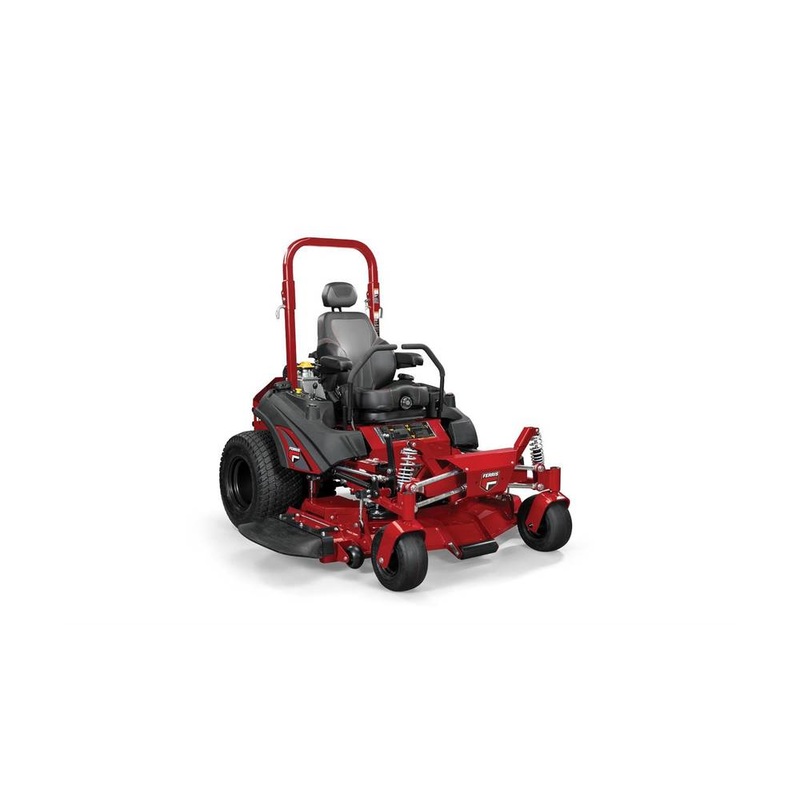

Featuring the next generation of Ferris suspension technology – ForeFront Suspension, a 2-belt iCD cutting system, heavy-duty dual commercial Hydro-Gear ZT-5400 drive system and travel speeds up to 12 mph, the ISX 3300 is engineered to increase efficiency and operator comfort.
Features
- Forefront Suspension System
- Ride-On Mower Warranties
- Redesigned Rear Bumper
- 500 Hour Oil Change
- Drive System: Dual, commercial Hydro-Gear ZT-5400 Powertrain transaxles with 9″ cooling fans
- Premium High-Back Suspension Seat
- Adjustable Cut Height
- Hercules II Cast-Iron: Hercules II Cast-Iron; 10″ dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16″ dia. shaft. Contact ball bearings with 1 3/16″ dia. shaft.
Specifications
- Model Number: 5901982
- Engine Brand: Kawasaki FX1000V EFI
- Engine Power Rating *: 38.5
- Displacement (cc): 999
- Cylinders: 2
- Starter: Electric
- Fuel Type: Gasoline
- Fuel Tank Capacity (gal): 11
- Hour Meter/Instrumentation: Dual-function hour meter, fuel level gauge in each tank
- Cutting Width (in): 61
- Cutting Height (in): 1.5 – 5
- Spindles: Hercules II Cast-Iron
- Deck Construction: iCD Cutting System
- Suspension: ForeFront Suspension System
- Transmission: Dual commercial Hydro-Gear ZT-5400 Powertrain Transaxles with 9″ cooling fans
- Drive Axles (in): 1.375
- Caster Tires (in): 13 x 6.5-6
- Drive Tires (in): 26 x 12-12
- Ground Speed-Fwd (mph): 0-12
- Ground Speed-Rev (mph): 0-5
- Overall Length (in): 84.5
- Overall Width (in) Deflector Down/Deflector Up: 77/66.5
- Dry Weight (lbs): 1470
- Seat Package: Premium high-back Suspension Seat with arm rests, multiposition head rest, adjustable lumbar and back recline
- Certified Roll-over Protection System: 165 foldable
- Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
- Parking Brake / Safety Circuit: Hand operated internal transaxle brake
- Warranty (Engine) : 3-Year limited manufacturer’s warranty
- Warranty (Balance of Machine) : 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
- Engine Configuration: Kawasaki
Specification:
Engine:
- Manufacturer: Kawasaki
- Horse Power: 38.5 hp
- Type: FX1000V EFI
- Displacement: 999cc
General:
- Transmission: Dual commercial Hydro-Gear ZT-5400 Powertrain Transaxles with 9 in. cooling fans
- Wheel Size: 26 x 12-12 in.
- Fuel Capacity: 11 gal.
Deck:
- Deck Size: 61 in.
| Width | Weight | Height | Length |
|---|---|---|---|
| 66.5Inch | 1470Pounds | 0Inch | 84.5Inch |
