Description
Description:

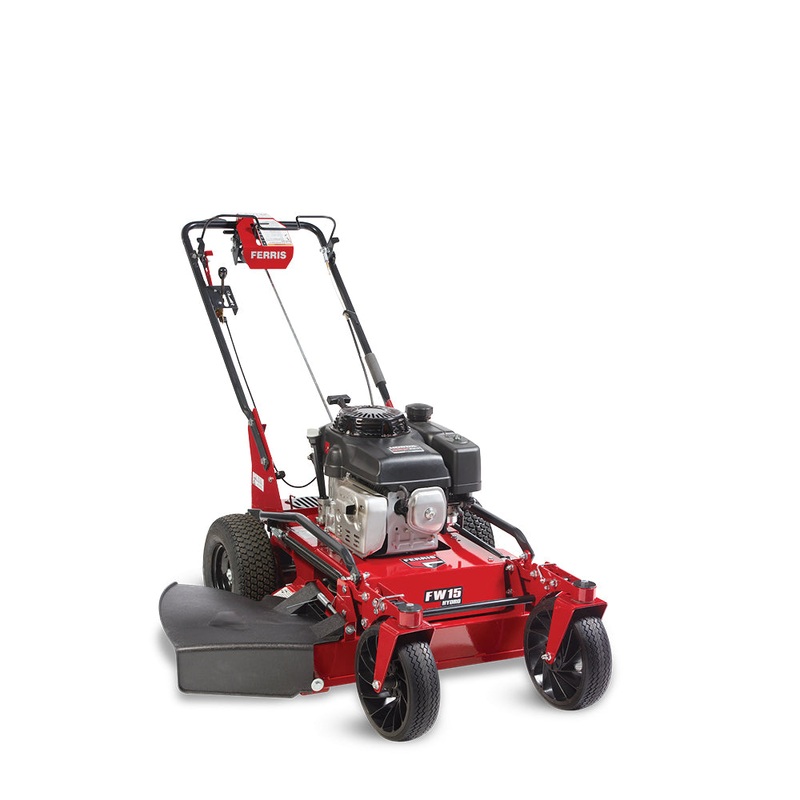

The job isn’t done until all the nooks and crannies of the property are mowed, including around trees and landscaping. That’s why every crew needs an FW15 on the truck. This variable hydrostatic 32″ commercial walk-behind is sturdy enough for the rigors of commercial work and is also maneuverable and easy to operate.
Specifications:
Engine
- Brand: Honda GXV390
- Power Rating: 10.2 hp
- Displacement: 389 cc
- PTO: Manual, Cable
- Cylinders: 1
- Starter: Manual
- Fuel Tank Capacity: 0.55 gal
Cutting Deck
- Deck Size: 32 in
- Cutting Height Range: 1.5 – 5 in
- Spindles: Aluminum Greaseable
- Deck Construction: 14 and 12-gauge steel
Transmission
- Type: Peerless axle with differential, chain driven by Hydro-Gear RT-310 pump and motor
- Drive Axles: 0.75 in
Tires
- Caster Tires: 10.5 x 3 Lockable Wheel
- Drive Tires: 13 x 5-6
Speed
- Forward Speed: 0 – 4 mph
- Reverse Speed: 0 – 2 mph
Dimensions
- Overall Length: 73.5 in
- Overall Width (Deflector Down): 44 in
- Overall Width (Deflector Up): 32.5 in
- Dry Weight: 285 lbs
Instrumentation & Safety
- Instrumentation: Speed Indicator
- Safety Controls: Blade Control Bail Operator Presence Control (OPC)
Warranty
- Balance of Machine Warranty: 2-year limited warranty for commercial use (parts & labor), with varying coverage for other components
- Engine Warranty: 3-year limited engine warranty
