Description
Description:

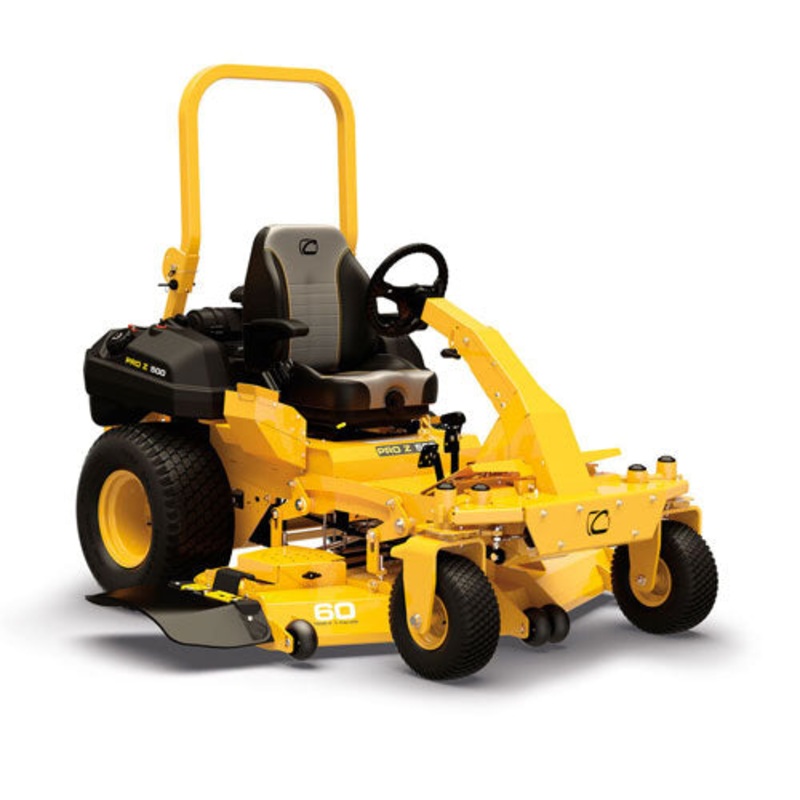

The Cub Cadet Pro Z 560S KW features a 60-inch, fabricated deck with aKawasaki FX Series V-Twin engine. This model features a pedal-assisted lift for the cutting deck, allowing the operator to quickly and easily adjust the deck height between sixteen different heights. Dual 7.5 gallon fuel tanks provide all-day mowing capabilities without the need to refuel often.
Features:
- 27HP/852cc Kawasaki FX850V Series V-Twin Engine
- 60-inch, 3-blade fabricated deck
- 12cc Parker HTJ series pumps and 260cc Parker motor
- Dual 7.5 gallon fuel capacity
- Ground speed: 10 mph forward/5 mph reverse
- Front wheels: 15 x 6 in – 6 in
- Rear wheels: 24 x 12 in – 12 in
- 3-year limited warranty
- Model:53TIHJUV050
Specifications:
Warranty
- Commercial Warranty: 3 years / no hour limit
Steering
- Type: High Performance Steering Wheel & Foot-pedal Control
- Adjustment: Multi-position Quick-adjust steering column
Mower Deck
- Size/Type: 60″ Fabricated Deck
- Material: 7ga. (.187) steel shell
- Top Reinforcement: 7ga. (.187″) top plate
- Bottom Reinforcement: 7ga. (.187″) bottom plate
- Rolled Leading Edge: 1/4″ (.250″) steel
- Side Construction: 5/16″ (.313) steel
- Cutting Height: 1″ – 5″
- Blade-Tip Speed (Approx): 18,500 fpm
- Deck Blades: Triple-blade / High-lift blade (standard) Marbain Blade
- Trim-Side Wear Guard: 3/4″ Thick UHMW-PE Replaceable
- Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk
- Spindle Covers: Steel – Tool-less Quick Release
- Discharge Chute: Heavy-duty Flex chute (impact resistant)
- Deck Height Adjustment: Foot pedal with spring assist (16 Positions)
General
- Rear Tires: 24″ x 12″ – 12″ (Turf Tread)
- Front Tires: 13″ x 6.5″ – 6″ (Turf Tread)
- Weight (approx): 1060 lbs
- Cup Holder: Integrated into Side Pod
- PTO Clutch: Warner Clutch – 125 ft lb
- ROPS: 2″x2″ Foldable 3 Position Low Profile Clearance
- Park Brake / Braking: Hand-operated lever with integrated hydro pump release lever
- Rear Bumper: 5/16″ Thick Steel rear engine guard with pre-drilled mounting points
- Seat Type: High-back dial suspension with EVC Cushion, seat belt, angle back adjust, arm rests
- Front Axle / Yokes: 2″ x 3″ solid axle tube and 1/2″ thick steel front yokes
- Frame: Fully welded, full-length 3/8 x 5″ laser cut steel with integrated tie-down slots
- Throttle/PTO/Key Switch: HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement PTO
- Cruise Control: N/A
- Length / Width / Height (discharge chute up width/ ROPS up height): 80″ L x 50″ W x 58″ H
- Safety Systems: Operator presence
- Hour Meter: Standard electronic
Engine & Drive System
- Horsepower / CC’s: 27 hp – 852 cc
- Engine Type: Kawasaki FX850v
- Ground Speed: Forward: 10 mph / Reverse: 5 mph
- Fuel Capacity: Twin 7.45 gal. tanks (14.9 gal. total) with dial gauge
- Transmission: Parker HTJ Series (12cc pump / 260cc wheel motor)
