Description
Description:

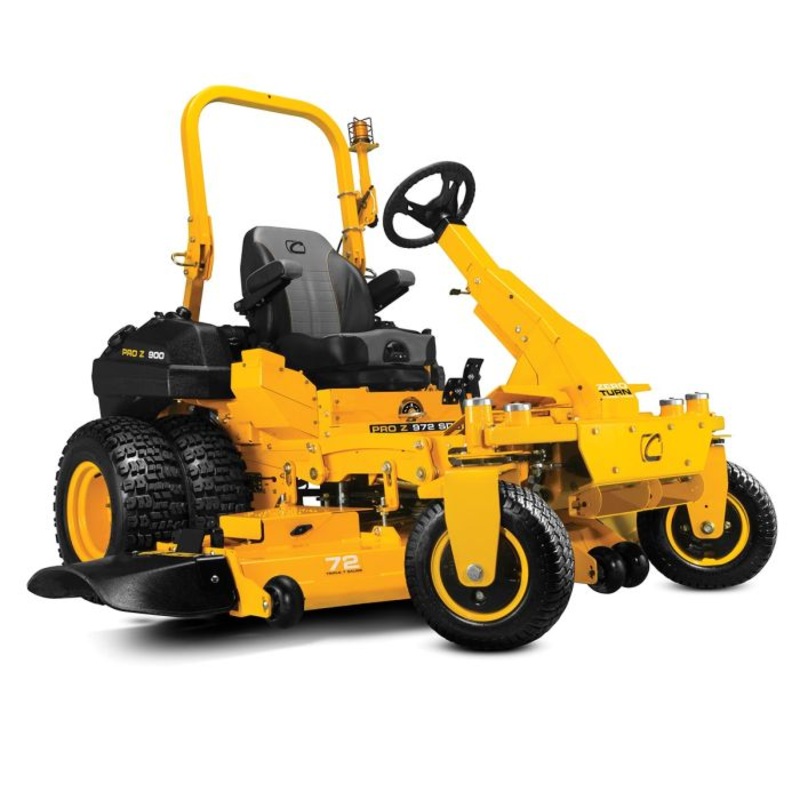

The Pro-Z 972 SDL Zero Turn is simply the strongest and best commercial grade mower you can buy.
With dual rear wheels, weighted front wheels and four wheel steering the Pro-Z 972 SDL will safely mow on slopes up to 25 degrees.
Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel ensures you are sitting upright and comfortable on even the steepest of slopes.
A huge 72 Inch fabricated steel cutting deck and strong 35HP Kawasaki V-Twin adds unmatched speed and productivity to the package.
The Pro-Z 972 SDL is the only choice for professional contractors who demand strength, reliability, productivity and extreme hillside mowing capability.
Features
A powerful slope mower with 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
72 triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel/15 degrees of travel left or right.
Dual rear wheels and weighted front rims give this steep slope mower traction on up to a 46% grade. 12-volt outlet kit and electronic power deck lift included
3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty
Specifications For Model PRO Z 972 SDL
Engine
- Engine BrandKawasaki
- Engine ModelFX Series
- Engine Model Number1000V
- Engine Displacement999cc
- Engine Output35HP
- Starter TypeElectronic
- Fuel Tank CapacityDual 7.45 gal. US (28.2 L)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity2.0 qt. US (1.89 L)
- LubricationFully pressurized
- Charging System15 amp regulated
- Fuel GaugeElectronic
- ChokeSeparate Choke
- Air FilterHigh Density
- Oil FilterYes
- Fuel DeliveryCarburetor
Battery
- Battery310CCA AGM battery; Relay/Fuse terminal block; 30 AMP voltage regulator
Drive System
- TransmissionParker heavy duty HTG 16cc pump / 310cc wheel motor with oversized wheel bearings
- Forward Speed14 mph / 22.5 km/h
- Reverse Speed6 mph / 9.5 km/h
Cutting Deck
- Deck Cutting Width72 in
- Deck Materialtriple-7-gauge fabricated steel
- Deck Engagement (PTO)Electronic with quick reset
- Deck ConstructionFloating, fabricated 7 ga (0.187″) steel and adjustable rear striping rollers
- Spindle ConstructionMaintenance-free cast aluminum housing
- Blade(s)3 high-lift Marbain blades / 18,500 fpm (approx.)
- Deck LiftElectro-hydraulic assist quick-lift design
- Cutting Height Range1 to 5 in 1/4 increments
- Anti-Scalping4 front deck gauge wheels
- Deck Positions16
Warranty
- Deck Shell Warranty5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty3 year / no hour limit commercial warranty
Chassis
- FrameFully welded, 3/8″ x 5″ laser-cut steel
- Front Axle2″ x 3″ solid with Isolation dampening system, 1/2″ thick steel
- ROPS2″ x 2″ foldable 3-position with low profile
- Bumper5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Rear Tow HitchBolt-On hitch std.
Controls
- Cruise ControlNA
- BrakesHand-operated lever with integrated hydro pump release lever
- Steering ControlQuick-adjust steering column w/ power steering
- Operator ControlLow-profile throttle lever
Comfort
- Seat TypeHigh-back air-ride suspension, EVC cushion, seat belt, angle-back adjust, lumbar support, padded armrests, isolation dampening system mounted base (lateral suspension)
- Seat Suspensionside-to-side swivel/15 degrees of travel left or right
- Seat Control SwivelUser-controlled lock/unlock swivel seat for operator leveling up to 30-degrees total/15-degrees left or right travel
Wheels
- Rear Tires25″x9″-12″ HD Traction Tread
- Front Tires16″x6.5″-8″ Kenda K505
- Tire TreadHeavy-Duty traction tread
Dimensions
- Dimensions L/W/H88″ / 74″ / 85″
- Weight (approx.)1,885 lbs
Additional Specifications
- Hour MeterCrew Boss
- Headlight(s)6 LED Lights for 360 degrees of lighted visibility; Amber Beacon with three position adjustments
- Cup HolderIntergrated into Side Pod
- Model Number53TILMUY050
Specifications
- Engine Starter TypeElectric
