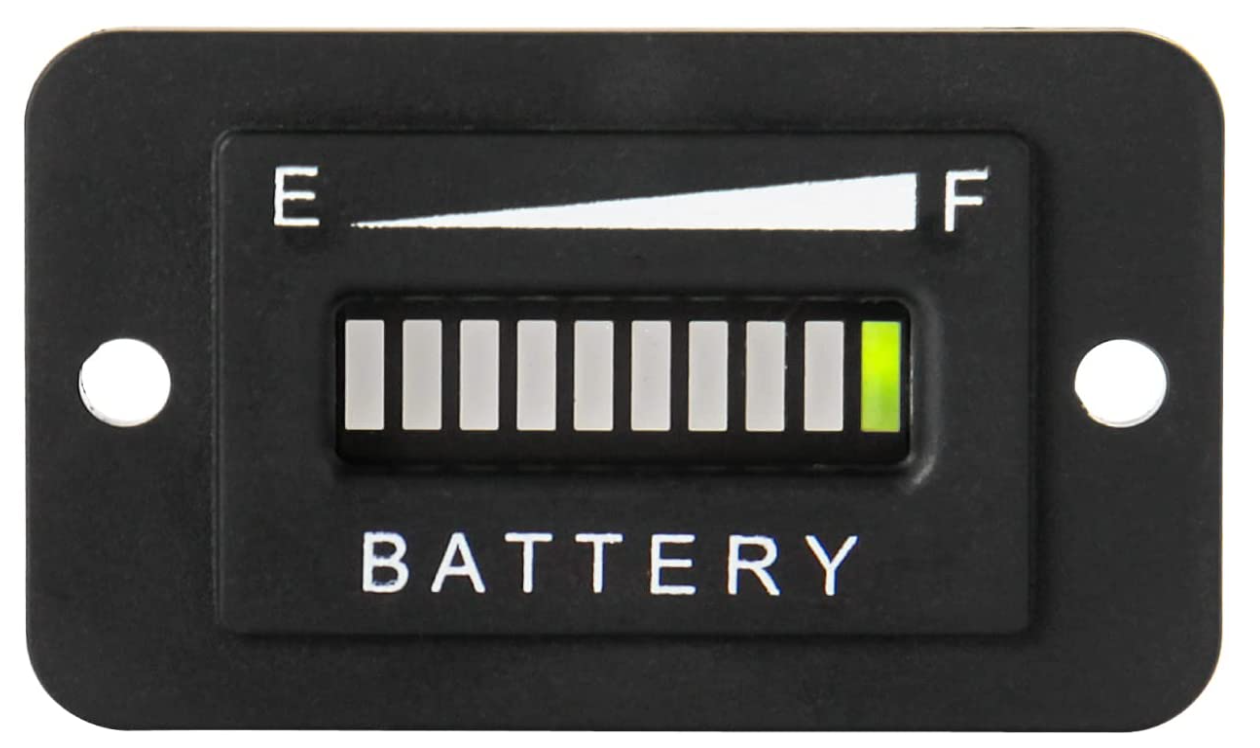

Battery Indicator RL-B1003
Lead-Acid Battery Level Meter —- It used on Lead-Acid battery powered device to state the remain battery capacity (not suit for Trojan type battery).
Multi-Color Single Display —- 10 segment LED bars display the power percentage by different colors: 1 red, 2 yellow,7 green, resolution: 10% per LED segment.
Installation Notes —- The terminal “C” is connected to the battery “+” or key switch, the indicator will scan from full to empty, once battery was fully charged, meter will cycle through for continuous 6 minutes then stay “full” position. Please reference the wiring diagram.
Unique Design —- Surface waterproof rating: IP65.
